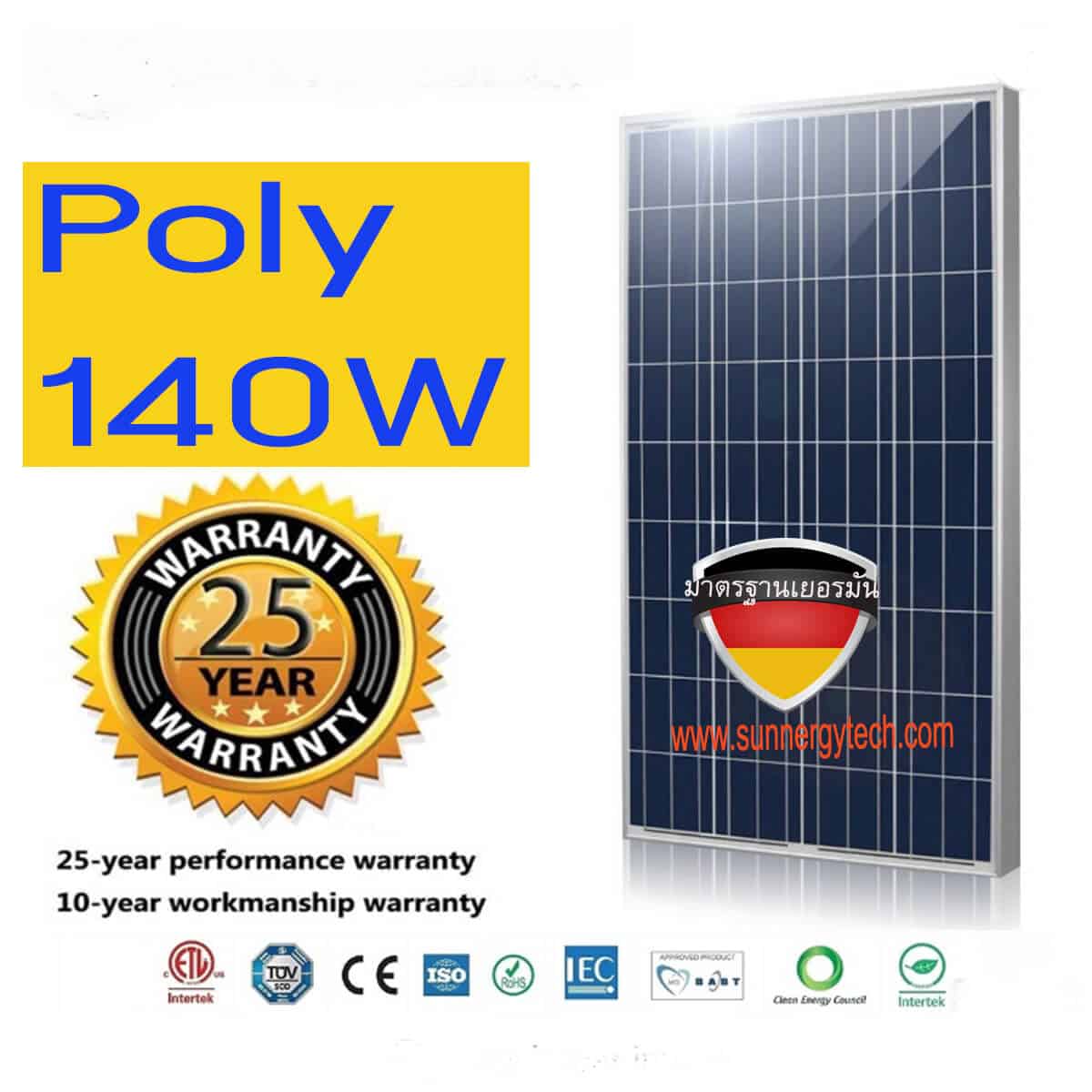

| Model | STC-SPP135W | STC-SPP140W | STC-SPP145W | STC-SPP150W | STC-SPP155W | STC-SPP160W | STC-SPP165W |
| Rated Maximum Power at STC | 135W | 140W | 145W | 150W | 155W | 160W | 165W |
| Maximum Power Voltage (Vmp) | 17.94V | 17.98V | 18.06V | 18.11V | 18.17V | 18.21V | 18.25V |
| Maximum Power Current (Imp) | 7.53A | 7.78A | 8.03A | 8.28A | 8.53A | 8.79A | 9.05A |
| Open Circuit Voltage ( Voc) | 22.23V | 22.31V | 22.38V | 22.47V | 22.53V | 22.59V | 22.65V |
| Short Circuit Current (Isc) | 8.22A | 8.43A | 8.62A | 8.78A | 8.91A | 8.96A | 9.01A |
| Module Efficiency | 13.62% | 14.12% | 14.62% | 15.13% | 15.63% | 16.14% | 16.64% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Poly-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 36 (4×9) | ||||||
| Dimension | 1480x670x30/35mm | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||
| Output Cable | Section Size: 2.5mm² , Length: 600mm | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 2 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 600V(UL) | ||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 15A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.41%/°c | ||||||
| Temperature Coefficient of Voc | -0.31%/°c | ||||||
| Temperature Coefficient of Isc | +0.06%/°c | ||||||
