คำอธิบาย

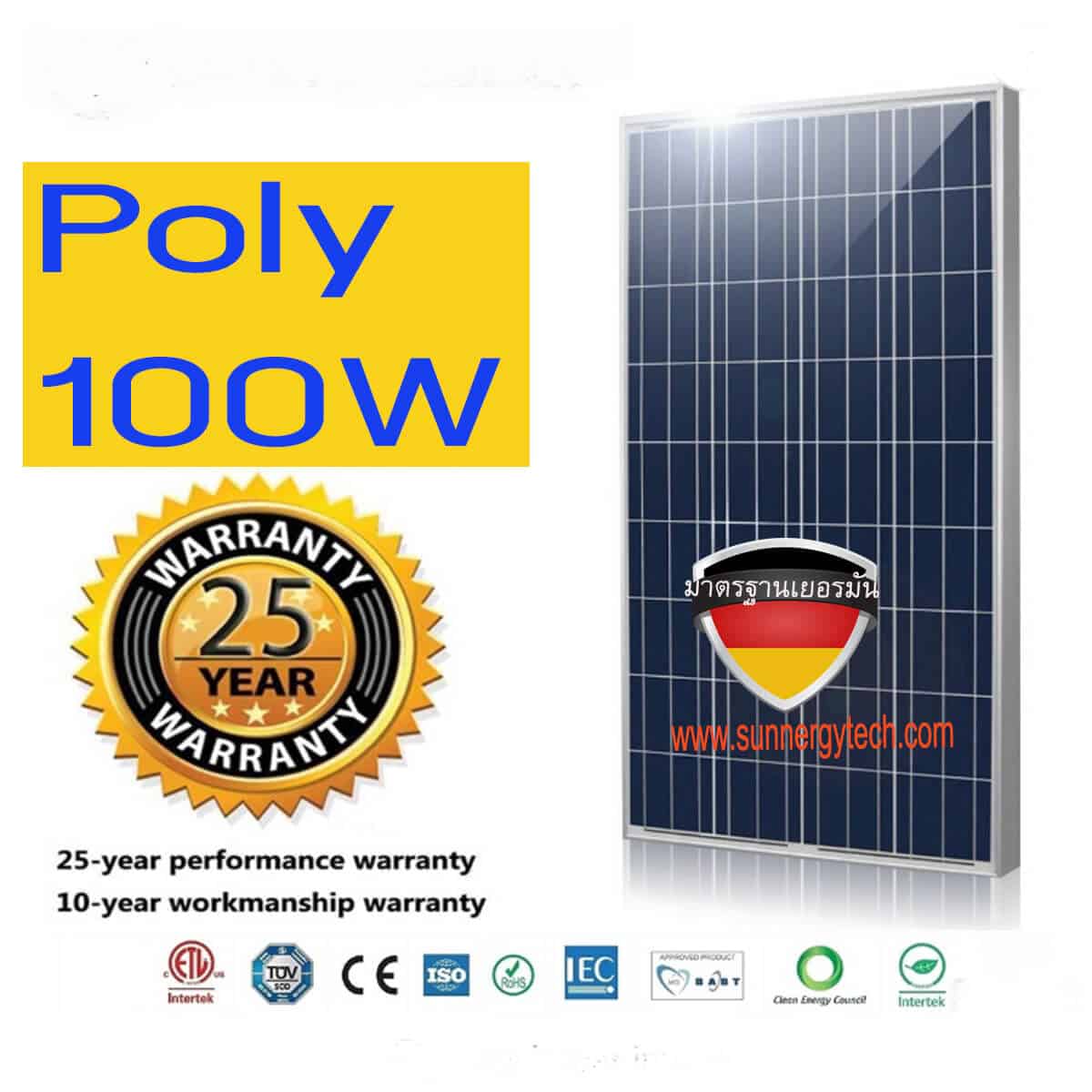

แผงโซล่าเซลล์โพลี 100 วัตต์
| Model | STC-SPP70W | STC-SPP80W | STC-SPP90W | STC-SPP100W | STC-SPP110W | STC-SPP120W | STC-SPP130W |
| Rated Maximum Power at STC | 70W | 80W | 90W | 100W | 110W | 120W | 130W |
| Maximum Power Voltage (Vmp) | 17.4V | 17.8V | 17.4V | 17.8V | 17.4V | 17.5V | 17.8V |
| Maximum Power Current (Imp) | 4.06A | 4.55A | 5.18A | 5.63A | 6.32A | 6.86A | 7.31A |
| Open Circuit Voltage ( Voc) | 21.8V | 22.4V | 21.8V | 22.4V | 21.8V | 22.1V | 22.4V |
| Short Circuit Current (Isc) | 4.35A | 4.86A | 5.78A | 6.18A | 6.82A | 7.42A | 7.81A |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Poly-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 36 (4×9) | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||
| Output Cable | Section Size: 2.5mm² | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 2 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 600V(UL) | ||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 15A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.41%/°c | ||||||
| Temperature Coefficient of Voc | -0.31%/°c | ||||||
| Temperature Coefficient of Isc | +0.06%/°c | ||||||
